The proliferation of tactical ballistic missiles (TBMs) on the modern battlefield presents a rapidly evolving threat that challenges many of the world’s most established air defense systems. The highly effective Norwegian-American NASAMS, a stalwart in defending against aircraft, drones, and cruise missiles, was not originally conceived to counter the unique high-speed, high-altitude trajectory of ballistic threats. Addressing this capability gap is critical for ensuring the system’s relevance and effectiveness in future conflicts.
This article presents a hypothetical detailed technical framework for integrating a robust Anti-Tactical Ballistic Missile (ATBM) capability into the NASAMS architecture. It analyzes leading radar and interceptor technologies from American, Israeli, and European defense industries, weighing their performance specifications against the complex realities of system integration. It should be noted that this analysis serves as a thought exercise, exploring potential technological pathways rather than detailing a confirmed program of record.
The ultimate goal is to propose a hypothesis for a single, coherent implementation roadmap that prioritizes systems with long-term growth potential, thereby transforming NASAMS into a true multi-domain air and missile defense solution.
Detailed Technical Analysis of Radar Systems
Several radar systems offer varying capabilities for ballistic missile detection and tracking.
US Radar Systems

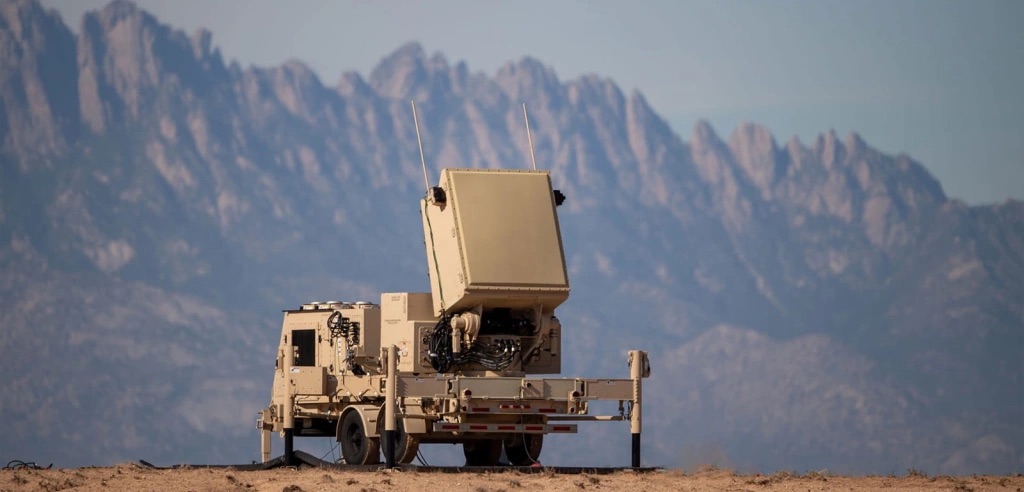

Developed by Raytheon, this advanced Active Electronically Scanned Array (AESA) radar provides 360-degree coverage for surveillance and fire control. It has a detection range of up to 40 km for tactical targets and an optimal altitude coverage between 3,000 and 12,000 meters, with a maximum of 20,000 meters. Crucially, it’s specifically designed for ballistic missile detection, capable of tracking and engaging multiple targets simultaneously. Integration with NASAMS is already underway, with tests conducted in early 2024. Each system is estimated to cost between $40-60 million, offering a direct upgrade path with minimal integration issues.
AN/MPQ-64 Sentinel F1
Also from Raytheon, this is a 3D X-band pulse-Doppler radar with a track range of 120 km for NASAMS 2 and an altitude coverage of up to 21,000 meters. While currently integrated as the baseline NASAMS radar, its capability against slower ballistic missiles is limited, and it’s not optimized for ballistic trajectory tracking. Each system costs approximately $20-30 million, but its inadequacy for most tactical ballistic missile threats is a significant limitation.
Israeli Radar Systems

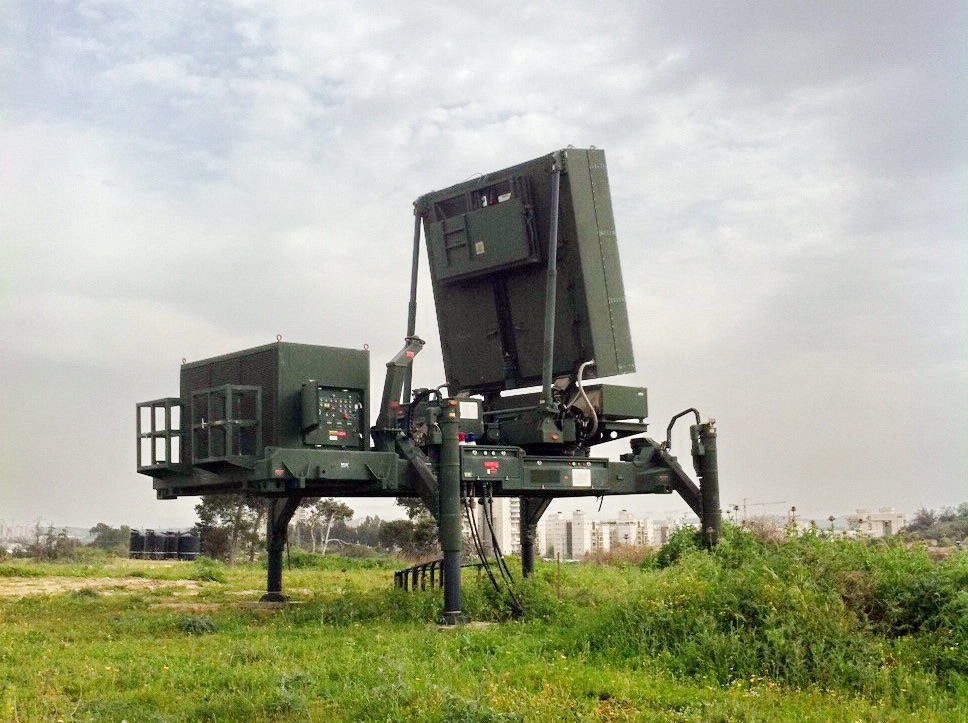

ELM-2084 MMR
Developed by ELTA Systems (Israel Aerospace Industries), this S-Band AESA radar boasts an impressive detection range of up to 470 km for air targets and can track up to 1,100 targets concurrently with an elevation coverage of 0-80 degrees. It has proven capability in detecting and tracking tactical ballistic missiles, combat-tested with systems like Iron Dome and David’s Sling. Currently, it’s not integrated with NASAMS. Based on a Czech purchase, each system costs $100-125 million, offering exceptional range and target handling.

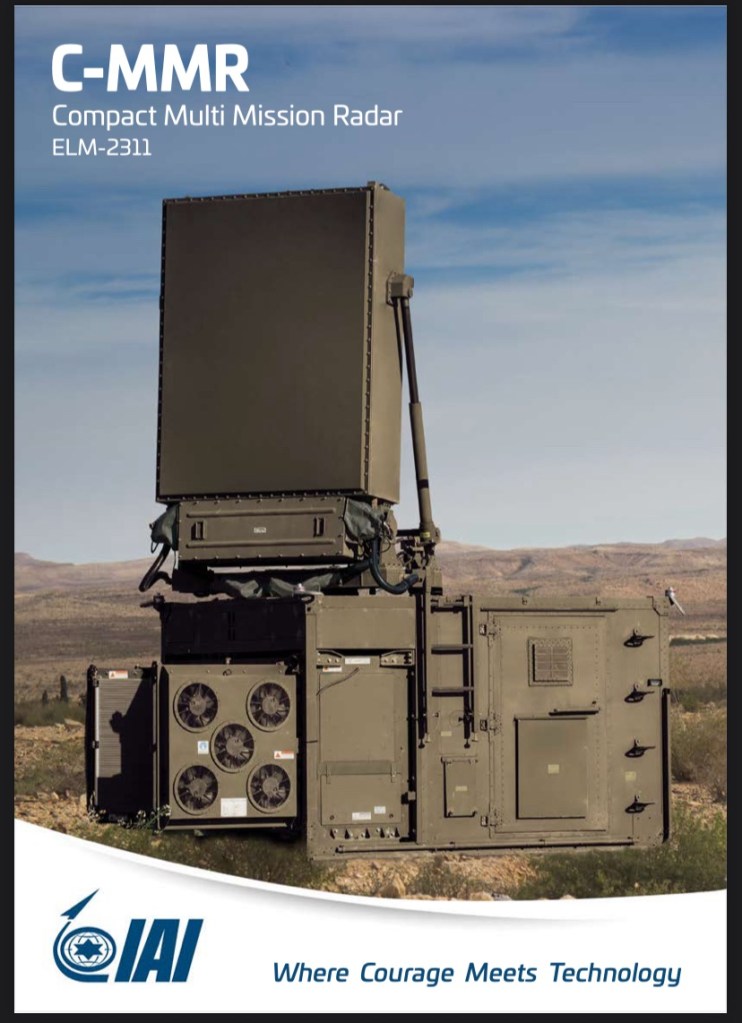

ELM-2311 C-MMR
Another offering from ELTA Systems, this C-Band AESA radar is more compact than the ELM-2084, prioritizing high mobility and rapid deployment. While its detection range is smaller, it’s specifically optimized for medium-range ballistic threats. It’s not currently integrated with NASAMS, and each system costs an estimated $60-80 million, providing a good balance of mobility and capability.
European Radar Systems

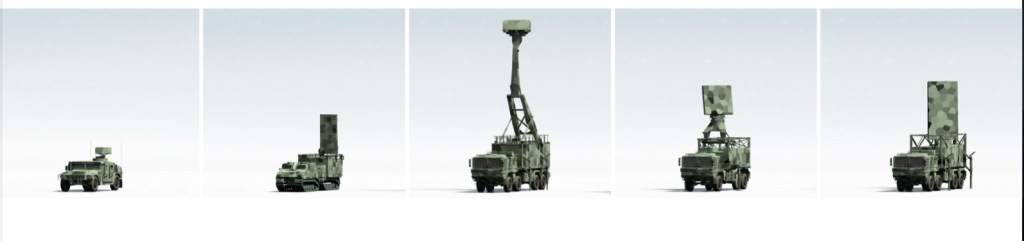

Saab Giraffe 4A
From Saab (Sweden), this G/H-band (4-8 GHz) AESA radar with GaN components has an instrumented range of up to 400 km and altitude coverage up to 20,000 meters at 70 degrees elevation. It can scan at up to 8 Hz in a Ground Based Air Defense (GBAD) role and maintain more than 100 ballistic missile tracks. It also has an optimized weapon locating mode for horizon searching. Currently not integrated with NASAMS, it’s estimated to cost $70-90 million per system, providing an excellent balance of range, altitude, and processing, along with high NATO interoperability.
Thales Ground Master 200 MM/A
Developed by Thales (France), this medium-range 3D radar has a detection range of approximately 250 km and uses digital beam forming technology. It has moderate capability against slower tactical ballistic missiles but is better suited for cruise missiles and aircraft. It is not currently integrated with NASAMS and costs an estimated $50-70 million per system, notable for its high mobility and rapid deployability.
Detailed Missile Options Analysis
Beyond radar systems, effective ATBM capability relies on specialized interceptor missiles.
US Missile Options
AMRAAM-ER (Extended Range)

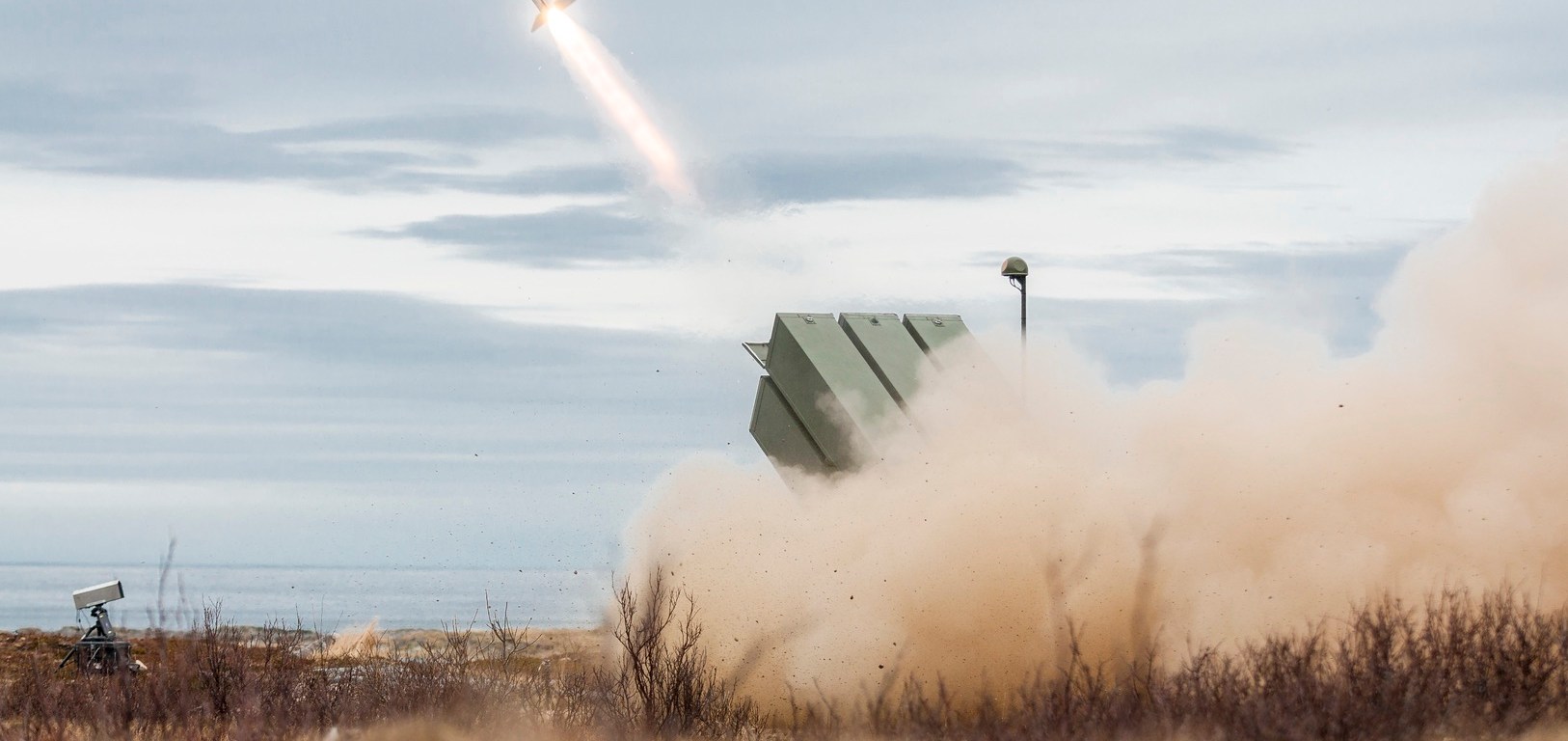

Developed by Raytheon, this missile extends the range of the standard AMRAAM (estimated 40-50 km) and reaches speeds of Mach 4+. It uses active radar homing and combines elements of the AIM-120 AMRAAM and RIM-162 ESSM. While already integrated with NASAMS 3, its ATBM capability is limited to slower ballistic missiles as it’s not optimized for ballistic threats. Each missile costs $1.5-2 million, with the key advantage of no additional integration costs due to using existing launchers.
PAC-3 MSE (Patriot Advanced Capability-3 Missile Segment Enhancement)
From Lockheed Martin, this missile has a range of approximately 35 km, an engagement ceiling of up to 15 km, and operates at high supersonic/low hypersonic speeds. It uses a Ka-band active radar seeker and is purpose-built for ballistic missile defense with hit-to-kill technology. It’s not integrated with NASAMS and would require substantial modifications. Each missile costs $5-6 million, but it’s a proven ballistic missile interceptor with a high success rate.
Israeli Missile Options
Stunner/SkyCeptor
A collaboration between Rafael (Israel) and Raytheon (US), this missile boasts a range of 40-300 km, speeds up to Mach 7.5, and is effective against threats at various altitudes. Its dual-mode seeker (active radar and IIR) is purpose-designed to intercept tactical ballistic missiles, proven with the David’s Sling system. It’s not integrated with NASAMS. Each missile costs $2-3 million, offering a lower cost than comparable systems with dual-seeker technology and high growth potential.

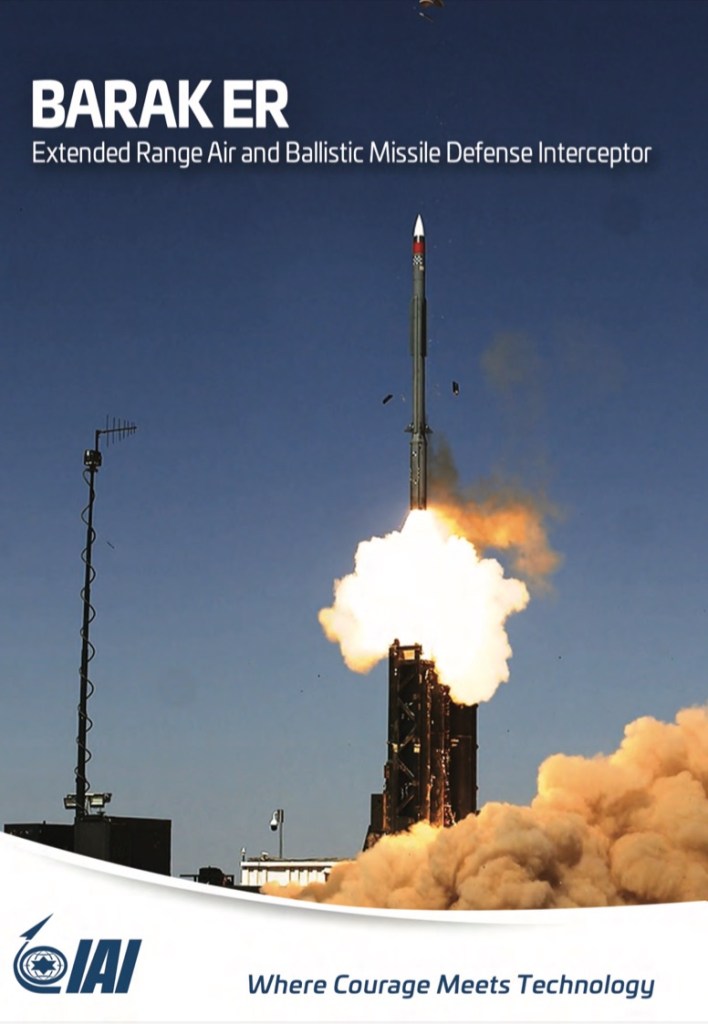

Barak ER (Extended Range)
Developed by Israel Aerospace Industries, this missile has a range of up to 150 km, an altitude capability of up to 30 km, and reaches hypersonic speeds with a booster. It uses an active RF seeker and provides enhanced anti-tactical ballistic missile capabilities against short to medium-range ballistic missiles. It’s not integrated with NASAMS. Each missile costs $3-4 million, featuring vertical launch capability and 360-degree coverage, similar to the NASAMS architecture.
European Missile Options
From the European consortium MBDA, this missile can intercept targets at ranges over 150 km and altitudes up to 30 km, reaching hypersonic speeds. It uses an active RF seeker with “PIF-PAF” control. It’s specifically designed for anti-tactical ballistic missile defense, capable of countering missiles with ranges up to 1,500 km. It’s not integrated with NASAMS. Each missile costs $4-5 million and benefits from extensive development for ballistic missile defense with proven technology.
Integration Complexity Analysis
Integrating new radar and missile systems into the existing NASAMS architecture presents varying levels of complexity.
Radar Integration Complexity
GhostEye MR: Low complexity as it’s already being integrated and optimized for software compatibility.
AN/MPQ-64 Sentinel F1: No complexity as it’s the current baseline radar.
ELM-2084 MMR and ELM-2311 C-MMR: High complexity due to different data protocols, physical interfaces, and command structures.
Saab Giraffe 4A and Thales Ground Master 200 MM/A: Medium complexity, given their NATO standards compatibility, but still requiring significant interface development.
Missile Integration Complexity
AMRAAM-ER: No complexity as it’s already integrated with NASAMS 3.
PAC-3 MSE: Very high complexity, requiring different launcher requirements, fire control, and guidance data links.
Stunner/SkyCeptor: High complexity, involving different fire control systems and potential new launcher requirements.
Barak ER: Medium-High complexity due to similar launch architecture but different guidance systems.
Aster 30 Block 1NT: Very high complexity, designed for a different system architecture, making integration complex.
Comprehensive Capability Comparison
When considering system combinations, several factors influence the overall effectiveness, cost-efficiency, and time to implementation.
GhostEye MR + AMRAAM-ER: Offers moderate ATBM capability, medium range, high cost efficiency, and a short implementation time (1-2 years).
ELM-2084 + Stunner/SkyCeptor: Provides very high ATBM capability, long range, medium cost efficiency, but a long implementation time (5+ years).
GhostEye MR + PAC-3 MSE: Offers high ATBM capability, medium range, low cost efficiency, and a medium-long implementation time (3-5 years).
ELM-2311 + Barak ER: Delivers high ATBM capability, long range, medium cost efficiency, and a long implementation time (4-6 years).
Thales GM-200 + Aster 30 Block 1NT: Features high ATBM capability, long range, low cost efficiency, and a very long implementation time (6+ years).
Upgrade Pathway
To achieve a robust ATBM capability with significant growth potential, a single, phased implementation roadmap is recommended. This approach avoids cycling through interim systems and builds logically towards a final, highly capable architecture, evolving NASAMS into a multi-layered defense system by sequentially integrating superior components.
The target end-state is a NASAMS architecture networked with ELM-2084 MMR radars and armed with Stunner/SkyCeptor interceptors. This combination offers the highest performance ceiling and future-proofing. The following phased approach manages risk, cost, and delivers incremental capability.
Phase 1: Foundational ATBM Capability (Years 1-2)
The primary action in this phase is to complete the integration of the GhostEye MR radar and optimize the existing AMRAAM-ER missile. This involves finalizing GhostEye MR software integration and implementing fire control software updates to improve ballistic trajectory calculation and optimize AMRAAM-ER engagement envelopes against slower, shorter-range ballistic threats. This establishes a baseline ATBM capability against rudimentary threats, representing a low-risk step that provides immediate improvement and a modern AESA radar foundation for future growth. The estimated cost for this phase is $40-60 million for the radar plus minimal software development costs.
Phase 2: Advanced Interceptor Integration (Years 2-5)
The primary action here is to integrate the Stunner/SkyCeptor missile system into the NASAMS architecture. This is the most complex phase, requiring the development of a compatible fire control solution to process the missile’s dual-mode seeker data. It will likely necessitate modifications to or development of new launcher systems. The US-Israeli partnership between Raytheon and Rafael on this missile provides a strong foundation for this integration. This phase will result in a transformative leap in kinematic performance, giving the system a purpose-built “hit-to-kill” interceptor capable of defeating a wide range of tactical ballistic missiles at high speed and altitude. The estimated cost is $2-3 million per missile plus significant non-recurring engineering (NRE) costs for integration.
Phase 3: Ultimate Sensor Network & Full Capability (Years 5+)
The primary action in this final phase is to integrate the ELM-2084 MMR radar into the networked system. This involves developing a data fusion and networking layer that allows the ELM-2084 to act as the primary long-range search and track sensor. The ELM-2084 would provide early warning and high-fidelity track data, cueing engagements for Stunner-equipped NASAMS batteries. Existing GhostEye MR radars would be retained, serving as supplementary or gap-filler sensors, creating a resilient, multi-layered sensor grid. This phase realizes a comprehensive ATBM system, where the ELM-2084’s vast detection range and tracking capacity unlock the maximum engagement envelope of the Stunner/SkyCeptor missile, providing defense in depth against advanced threats. The estimated cost is $100-125 million per radar plus NRE costs for network integration.
Cost-Benefit Analysis
The recommended phased pathway is staged over 5+ years, incurring medium-high upfront costs and very high operational costs. However, it offers excellent capability gains and strategic value by building capability progressively and managing risk effectively.
In contrast, a one-step approach to full ELM-2084 and Stunner integration would have medium upfront costs, very high capability, but medium strategic value due to high initial risk and a long delay before any capability is realized. Similarly, integrating GhostEye with PAC-3 MSE would involve high upfront and operational costs, with medium strategic value due to high cost and complex integration.
Implementation Roadmap
Phase 1: Foundational Radar Upgrade (Years 1-2)
- Complete integration and fielding of the GhostEye MR radar with existing NASAMS units.
- Develop and test fire control software upgrades for ballistic missile tracking and AMRAAM-ER optimization.
- Validate enhanced capabilities through rigorous simulation and live-fire testing against ballistic target drones.
- Deploy initial operational capability at critical sites.
Phase 2: Interceptor Integration (Years 2-5)
- Launch a formal program to integrate Stunner/SkyCeptor with the NASAMS Fire Distribution Center (FDC).
- Design, prototype, and test necessary launcher modifications or replacements.
- Develop and validate the fire control and guidance uplink architecture for the new interceptor.
- Begin low-rate initial production of integrated launchers and missile stockpiling.
Phase 3: Advanced Sensor Network Integration (Years 5+)
- Initiate the integration program for the ELM-2084 MMR radar.
- Develop the advanced battle management software required for multi-radar data fusion and network-centric operations.
- Test the full system architecture: ELM-2084 detects and tracks, passes data to the FDC, which cues a Stunner/SkyCeptor launch from a NASAMS battery.
- Achieve full operational capability with a multi-layered sensor and interceptor network.
Conclusion
To evolve NASAMS into a credible anti-tactical ballistic missile (ATBM) system, a focused, growth-oriented strategy is paramount. A phased approach, beginning with the foundational GhostEye MR radar, then integrating the highly capable Stunner/SkyCeptor interceptor, and culminating with the addition of the long-range ELM-2084 MMR sensor, offers the most logical and risk-managed path forward.
This strategy avoids the inefficiency of cycling through temporary solutions and instead builds layers of capability, ensuring each investment contributes directly to a cohesive and exceptionally potent final system. This transforms NASAMS from its current role into a true multi-domain air defense system, possessing significant growth potential to counter the full spectrum of aerial threats for decades to come.
